Heltec LoRa Node Products Verschiltabel:
Voorzien zijn van:
"Heltec LoRa" productfamilie al inbegrepen, volg de opties:
LoRa spread spectrum communicatie (knooppunt);
Batterij aangedreven;
Goed RF-circuitontwerp en impedantie-aanpassing.
Product | Type① | MCU | FLASH | Batterij | Batterij detecteren | Vext③ | Laag vermogen | Scherm |
WiFi LoRa 32 | Dev-Board | ESP32 | 4MB | Lithium② | x | x | x | OLED (128x64) |
Wifi LoRa 32 (V2) (Product-ID: 1639291) |
Dev-Board | ESP32 | 8MB | Lithium② | | | 800uA | OLED (128x64) |
Draadloze stick (Product-ID: 1639290) |
Dev-Board | ESP32 | 8MB | Lithium② | | | 800uA | OLED (64x32) |
Draadloze Stick Lite (Dit item) |
Dev-Board | ESP32-PICO | 4MB | Lithium② | | | 35uA | x |
Draadloze shell (Product-ID: 1638101) |
Module | ESP32-PICO | 4MB | | | x | 10uA | x |
LoRa Kit 151 (Product-ID: 1639289) |
Dev-Board | STM32L151CBU6 | 128kB | Lithium | x | x | 7uA | x |
LoRa-knooppunt 151 (Product-ID: 1638100) |
Dev-Board | STM32L151CCU6 | 256kB | 1/2 AA lithium-chloorsulfietbatterij | | | 1.8uA | x |
Schildpad bord (Product-ID: 1638099) |
Dev-Board | STM32L432KC | 256kB | AAA x 2 | | | 5uA | x |
Opmerkingen:
① - Type:
Dev-Board - Kan direct worden gebruikt;
Module - Alleen kernfunctie, moet samenwerken met externe PCB of circuit.
② - Lithium: alle lithiumbatterij-aansluiting voor Heltec-kaarten is SH1.25-2;
③ - Vext: 3.3V (500mA) uitgang, voeding voor externe apparaten (bijv. Sensoren), in diepe slaapmodus, Vext kan worden uitgeschakeld via software;
④ - Laag vermogen: het ontwerp met laag vermogen van het product, van het hele circuit, de gemeten gegevens zijn de stroom van het systeem tijdens de diepe slaap.
Voorzien zijn van:

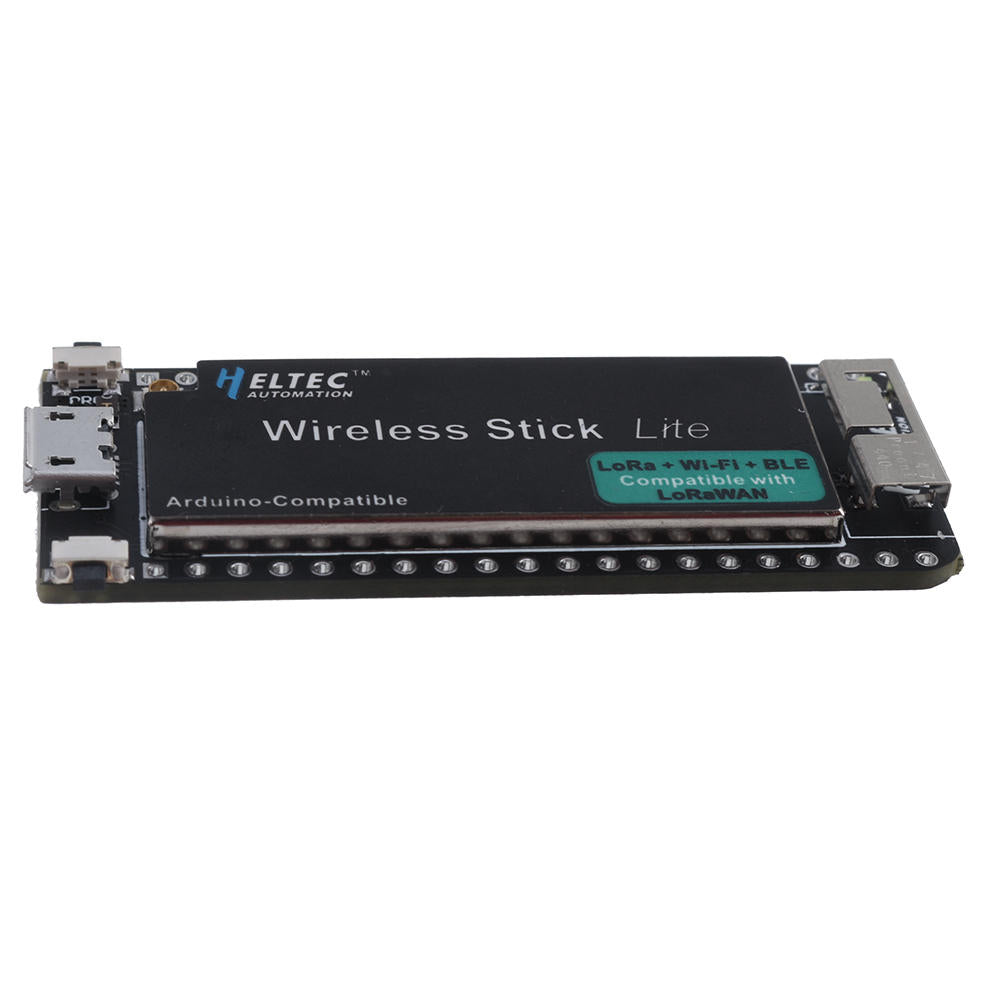

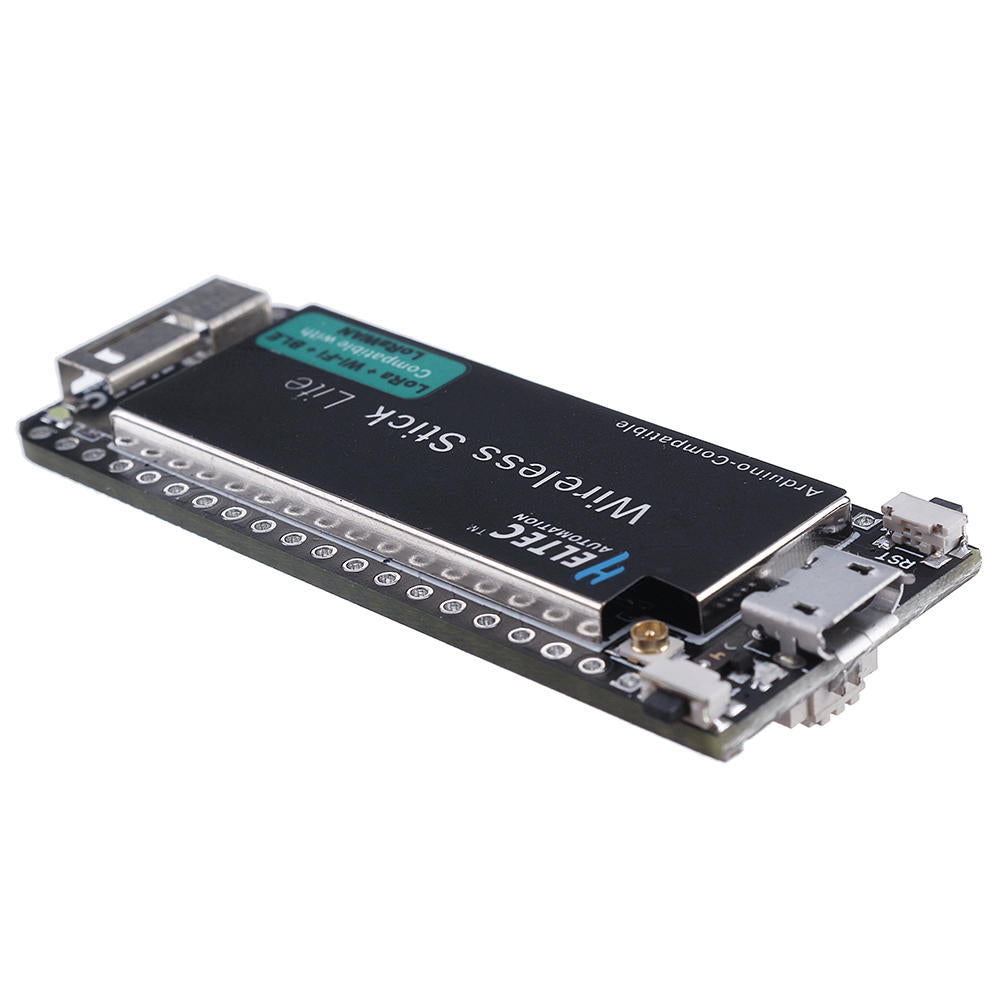

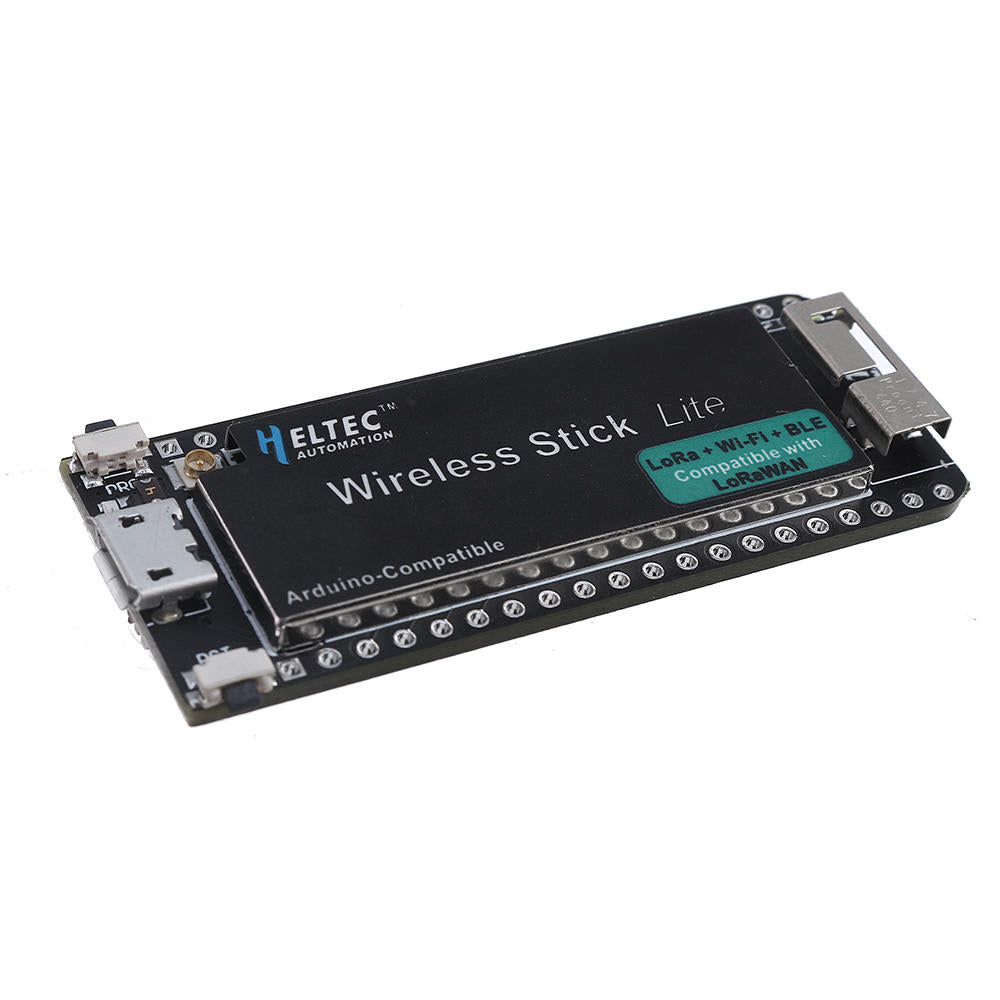

-Microprocessor: ESP32 (dual-core 32-bit MCU + ULP-core + interne 4 MB FLASH), met LoRa-knooppuntchip SX1276;

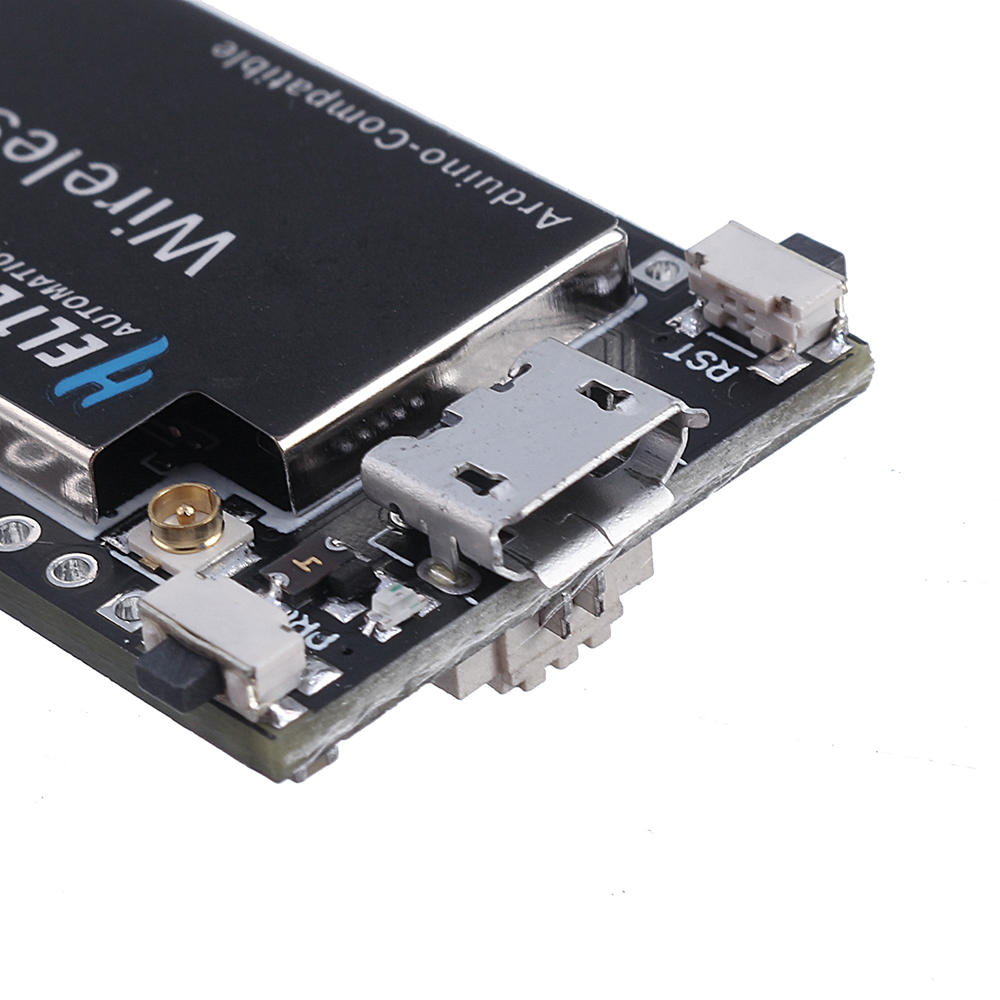

-Micro USB-koppel met een complete spanningsregelaar, ESD-bescherming, kortsluitingsbeveiliging, RF-afscherming en andere beschermingsmaatregelen;

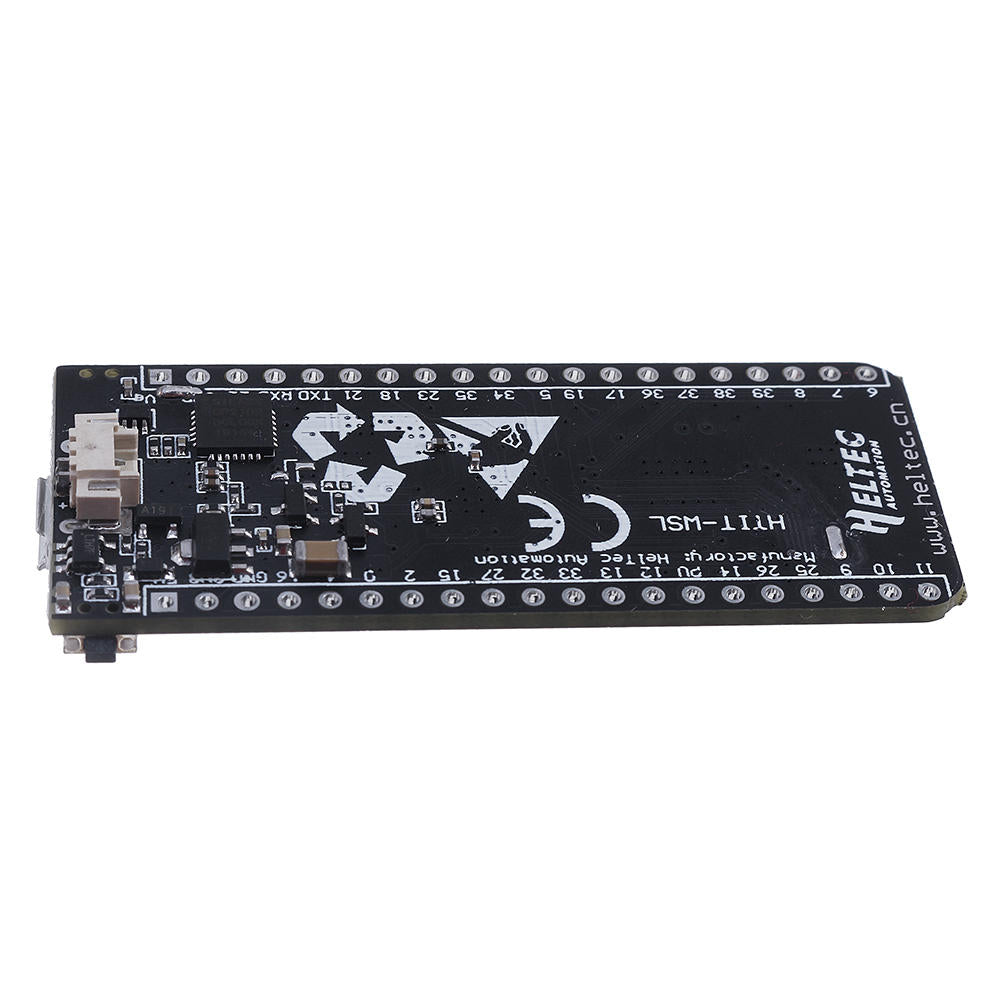

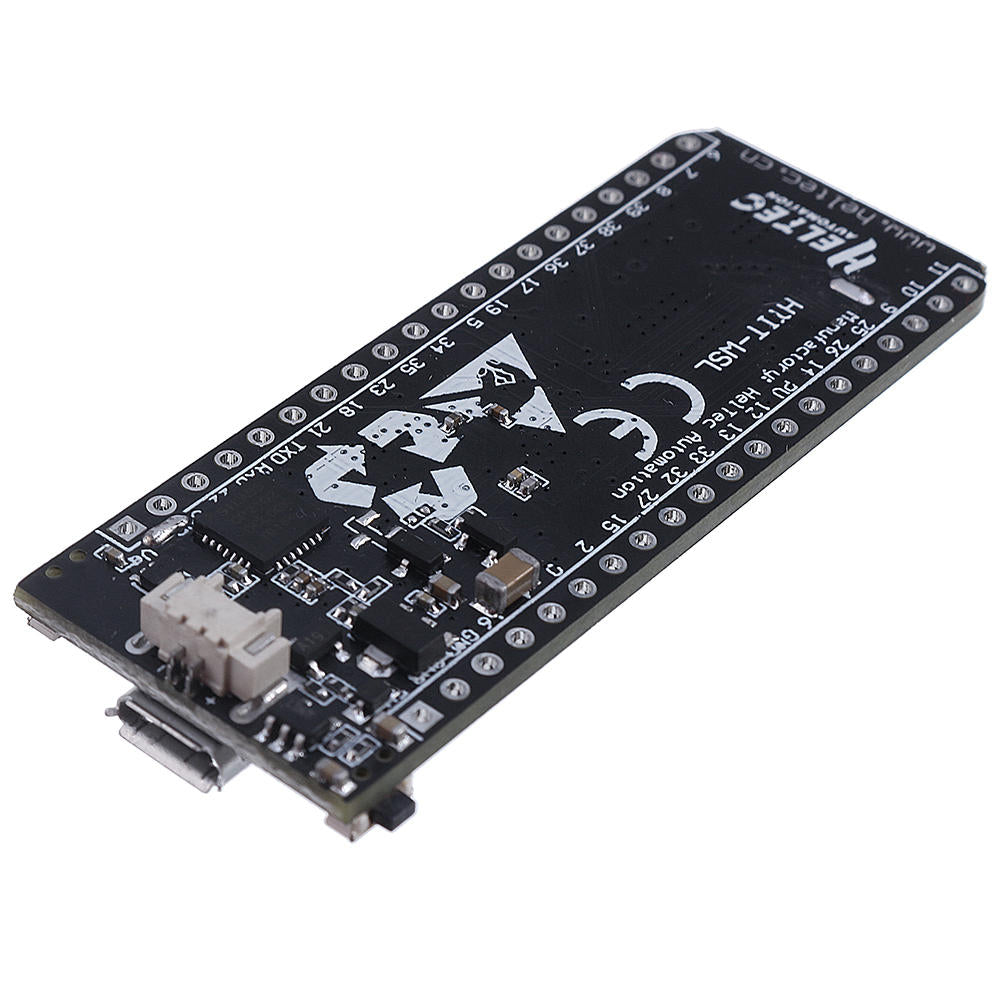

-Onboard SH1.25-2 batterij-koppel, geïntegreerd lithiumbatterijbeheersysteem (laad- en ontlaadbeheer, bescherming tegen overlading, detectie van batterijvermogen, automatisch schakelen tussen USB / batterijvermogen);
-Geïntegreerde wifi, LoRa, Bluetooth drie netwerkverbindingen, ingebouwde wifi, Bluetooth-speciale 2,4 GHz metalen 3D-antenne, gereserveerde IPEX (U.FL) -koppel voor LoRa;
-Geïntegreerde CP2102 USB naar seriële poortchip, handig voor het downloaden van programma's, het afdrukken van foutopsporingsinformatie;
-Ondersteuning van de Aduino-ontwikkelomgeving;
- (Exclusief) Ondersteunt de Aduino-versie van de ESP32 + LoRaWAN-protocolroutine van Heltec. Dit is een standaard LoRaWAN-protocol dat kan communiceren met elke gateway / basisstation waarop het LoRaWAN-protocol draait (vereist activering van het serienummer, alleen de ontwikkeling van het bedrijf) Het bord is beschikbaar, het serienummer kan op deze pagina worden opgevraagd);
-Met een goed RF-circuitontwerp en een goed ontwerp met laag vermogen (slaapstroom ≤ 30uA), is het handig voor leveranciers van IoT-applicaties om snel oplossingen te verifiëren en applicaties te implementeren;

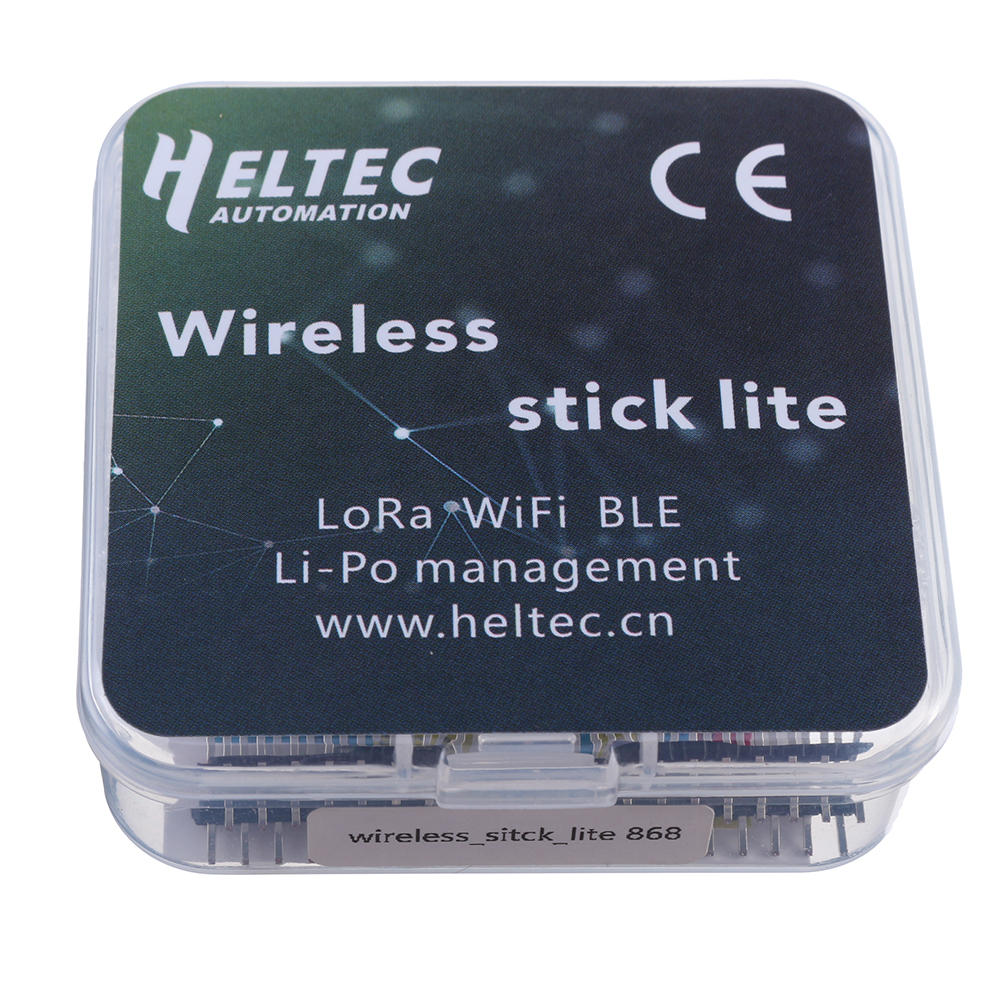

Pakket bestaat uit:

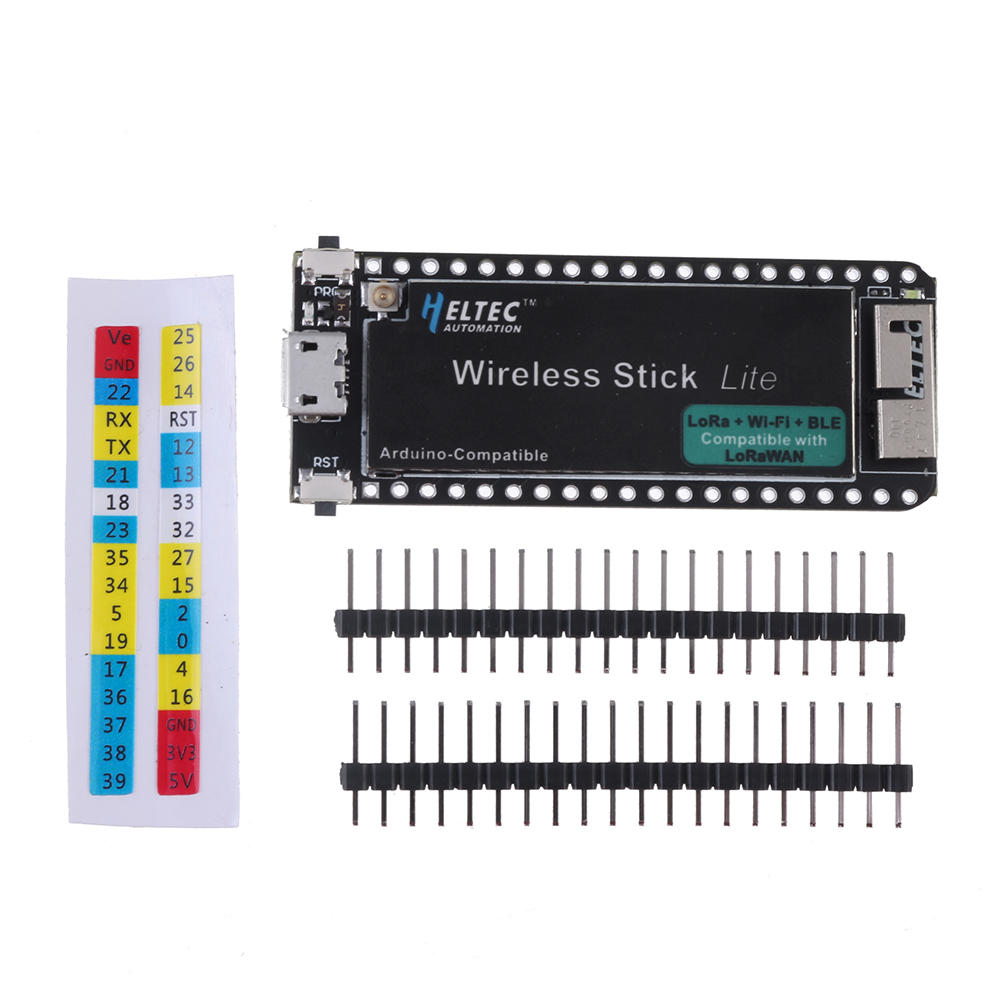

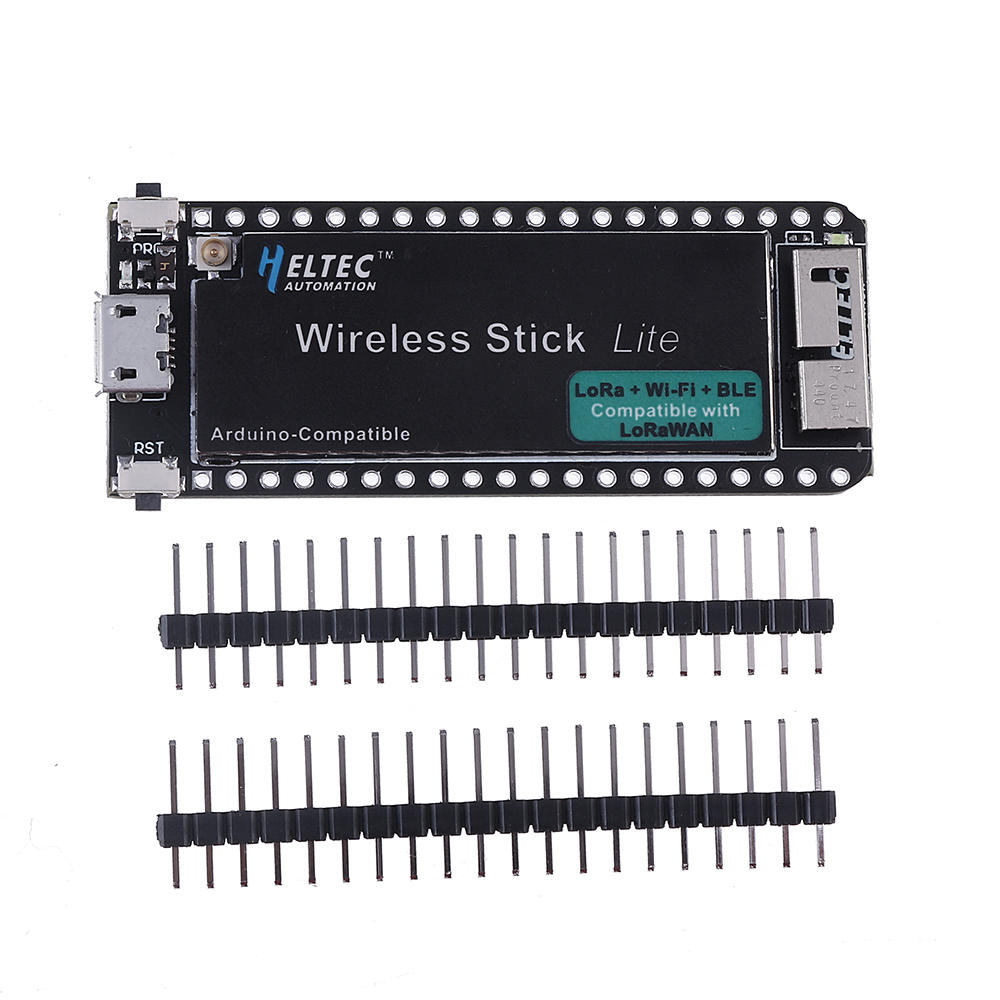

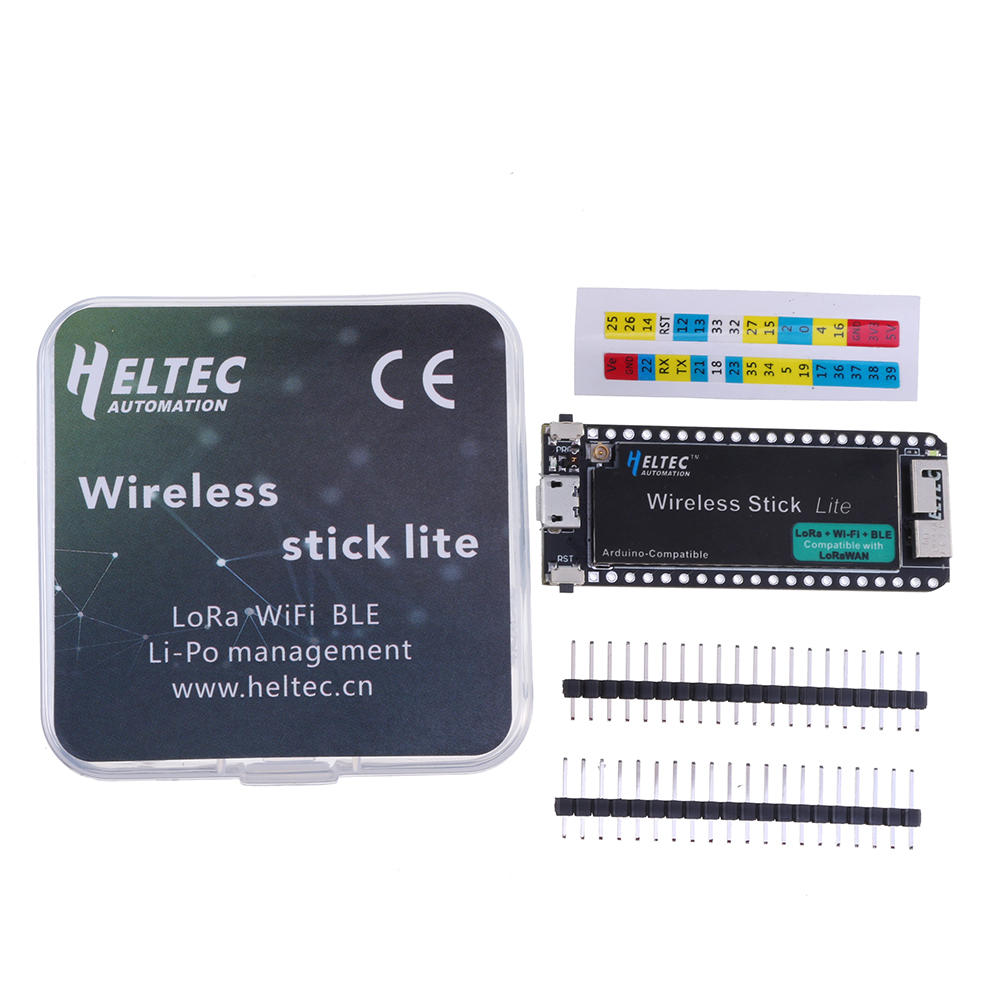

1 x Draadloos ESP32 Stick Lite
Bestandsondersteuning:
Bron | Parameter | |
MCU | ESP32 (240 MHz Tensilica LX6 dual-core + 1 ULP, 600 DMIPS, 520 KB SRAM, wifi, dual-mode Bluetooth) | |
LoRa-chip | SX1276 | |
LoRa-banden | EU_433, CN_470_510, EU_863_870, US_902_928 vier banden optioneel | |
LoRa maximaal uitgangsvermogen | 18dB ± 2dB | |
Hardware-bronnen | UART x 3; SPI x 2; I2C x 2; I2S x 1 | |
12 - bits ADC; 8-bits DAC | ||
29 algemeen GPIO | ||
Scherm | Geen | |
FLASH | 4 MB (32 M-bits) SPI FLASH | |
koppel | Micro-USB x 1; LoRa antenne-koppel (IPEX) x 1 | |
Grootte | 50,2 x 25,5 x 9,74 mm | |
USB naar UART Bridge | CP2102 | |
baterij type | 3,7 V lithium (SH1.25 x 2) | |
Batterij detectie circuit | | |
Stroomregeling van externe apparaten (Vext) | | |
Laag stroomverbruik | Diepe slaap 30uA |
Elektrische kenmerken | Staat | Minimum | Typisch | Maximaal |
Stroomvoorziening | USB-voeding (≥500mA) | 4.7V | 5V | 6V |
Lithium-aangedreven (≥250mA) | 3.3V | 3.7V | 4.2V | |
3.3V (pin) aangedreven (≥150mA) | 2.7V | 3.3V | 3.5V | |
5V (pin) aangedreven (≥500mA) | 4.7V | 5V | 6V | |
Stroomverbruik (mA) | WIFI-scan | / | 115mA | / |
WIFI AP | / | 135mA | / | |
LoRa 10dB-emissie | / | 50mA | / | |
LoRa 12dB-emissie | / | 60mA | / | |
LoRa 15dB-emissie | / | 110mA | / | |
LoRa 20dB-emissie | / | 130mA | / | |
Uitvoer | 3.3V pin-uitgang | / | / | 500mA |
5V-pins uitgang (alleen USB-voeding) | / | Gelijk aan de ingangsstroom | / | |
Stroomregeling van externe apparaten (Vext 3.3V) | / | / | 350mA |
Pakket bestaat uit:
1 x Draadloos ESP32 Stick Lite
Bestandsondersteuning:
How to install Heltec ESP32 Aduino Development Environment: http://www.heltec.cn/wifi_kit_install/
Wireless Stick Lite Broncode:
Heltec ESP (ESP32 & ESP8266) framework (de basis van Heltec ESP-serie producten Aduino-hardloopomgeving): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Heltec ESP (ESP32 & ESP8266) framework (de basis van Heltec ESP-serie producten Aduino-hardloopomgeving): https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series
Heltec ESP32 library (must work with Heltec ESP framework): https://github.com/HelTecAutomation/Heltec_ESP32
Heltec ESP32 LoRaWAN library (a standard LoRaWAN protocol library provide by Heltec Automation, need a license to active: http://www.heltec.cn/search/): https://github.com/HelTecAutomation/ESP32_LoRaWAN
Draadloze Stick Lite Pin out Diagram: https://github.com/Heltec-Aaron-Lee/WiFi_Kit_series/blob/master/PinoutDiagram/Wireless_Stick_Lite.pdf
Summary of Common Problems: https://docs.heltec.cn/#/en/faq/heltec_esp_series_common_problem_summary
AutoCAD & 3D-tekening:
AutoCAD 2017 versie tekening: https://docs.heltec.cn/download/Wireless_Stick_Lite.dwg
AutoCAD 2017 versie tekening: https://docs.heltec.cn/download/Wireless_Stick_Lite.dwg
Solid Works 2014 Version 3D Drawing(For reference only, Draadloze Stick Lite has the same shape and size compare with Draadloze stick, only less an OLED display): https://docs.heltec.cn/download/WirelessStick.zip
Interesting Applications by users: single-channel LoRa gateway solution: https://github.com/things4u/ESP-1ch-Gateway-v5.0
