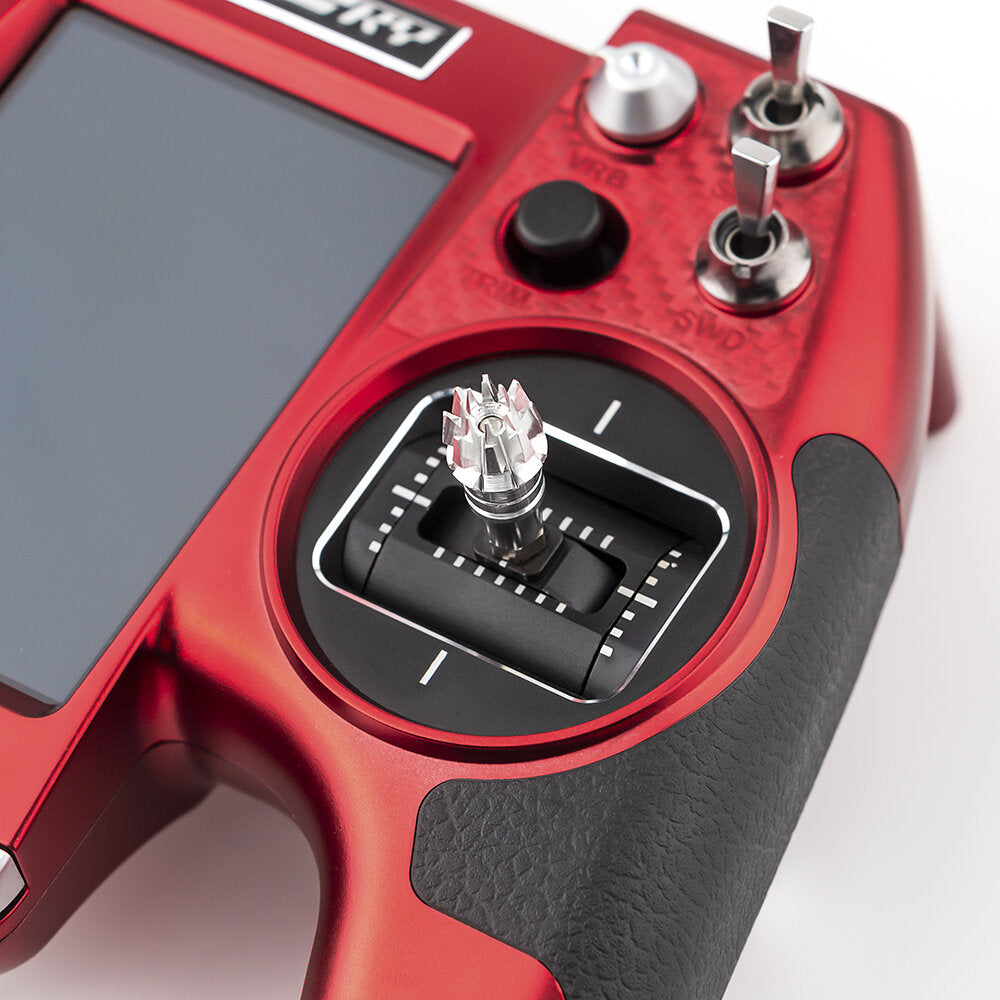

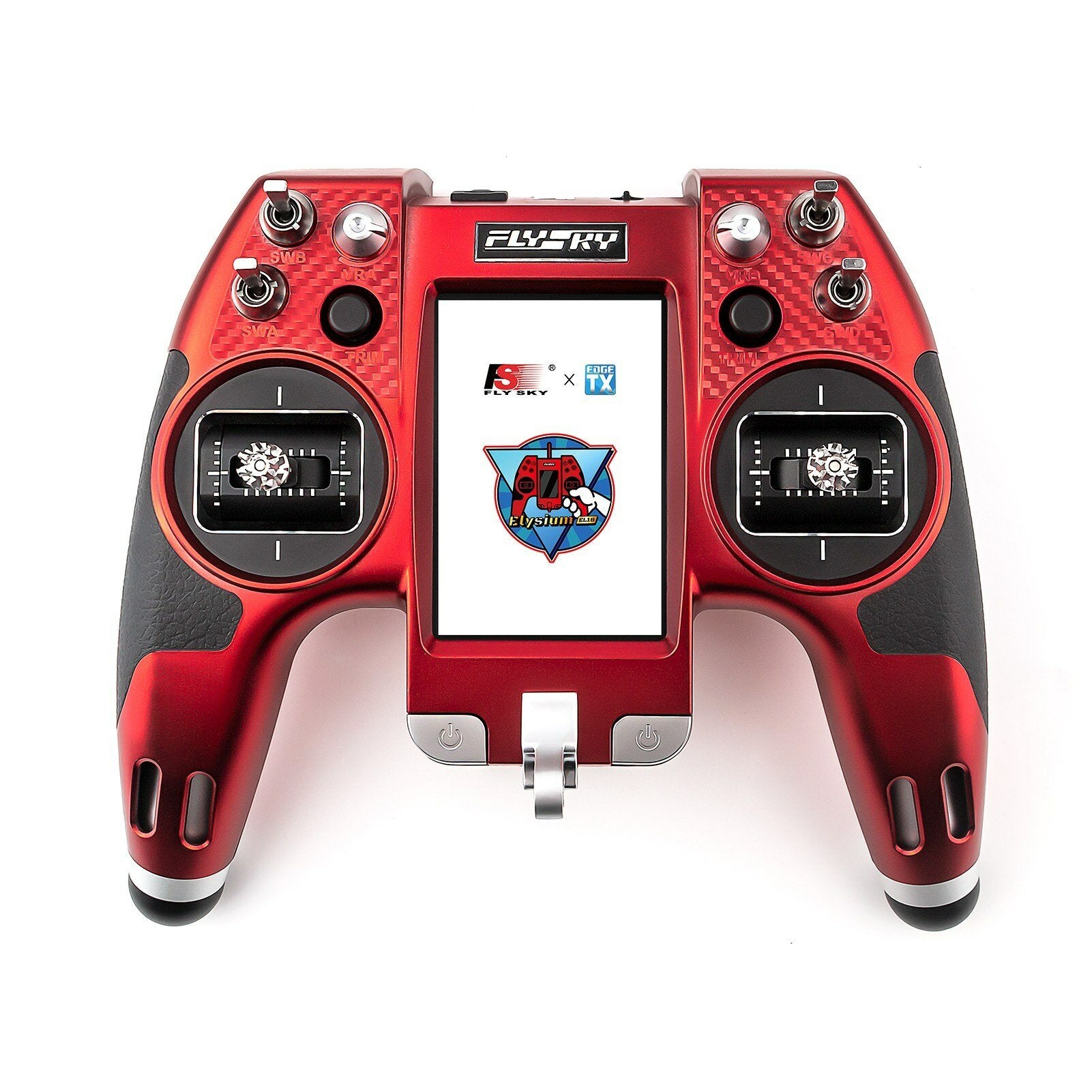

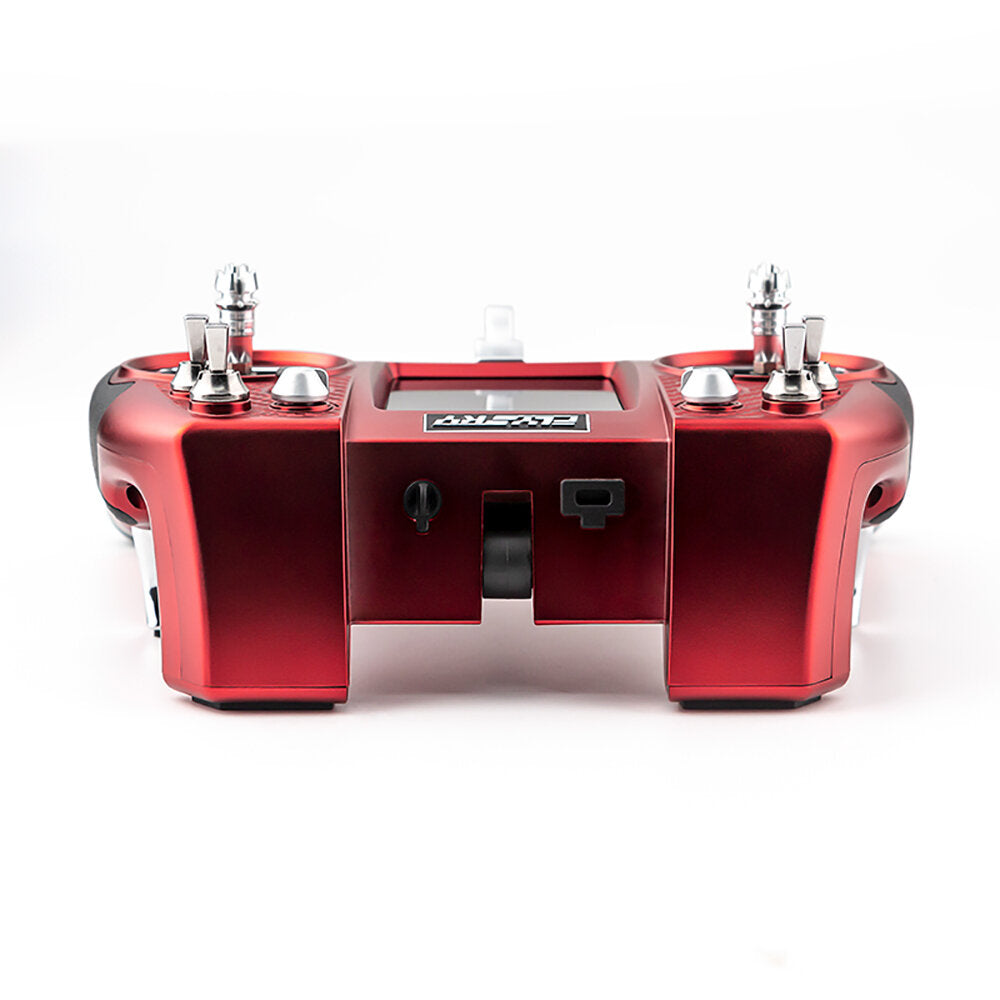

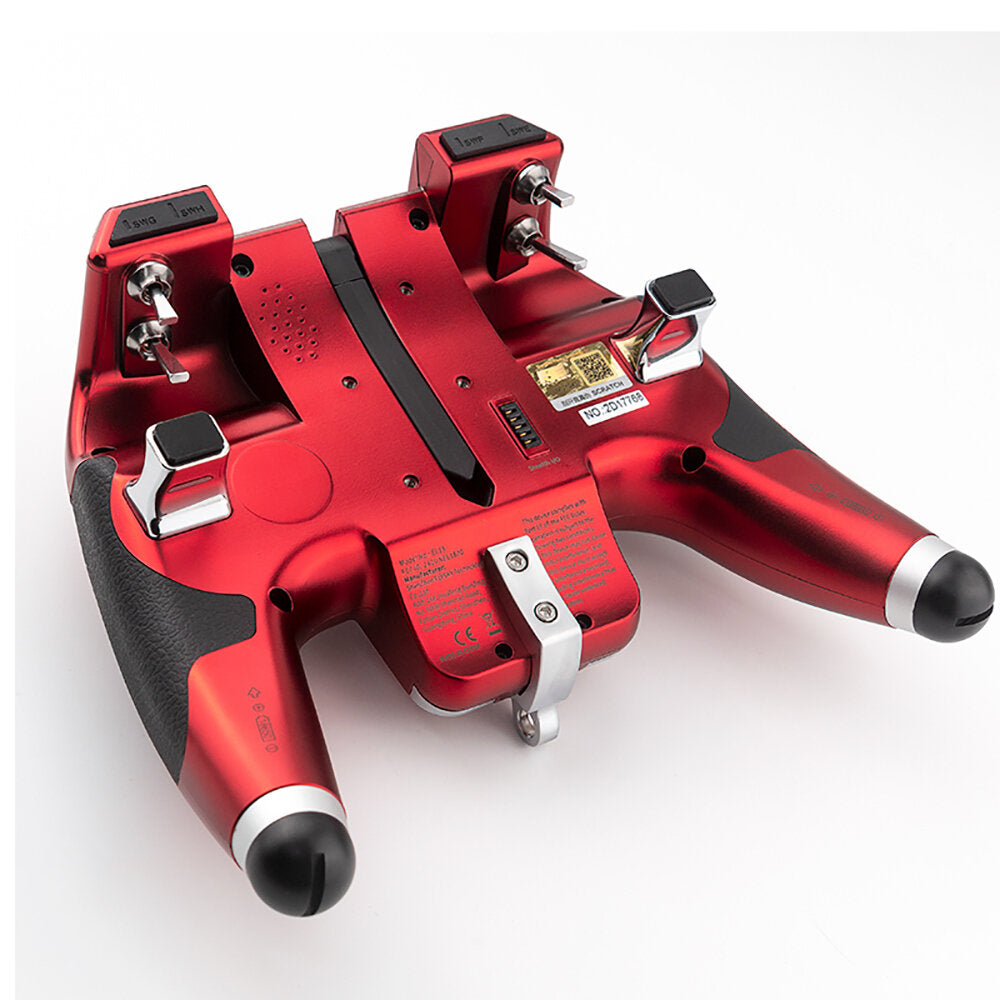

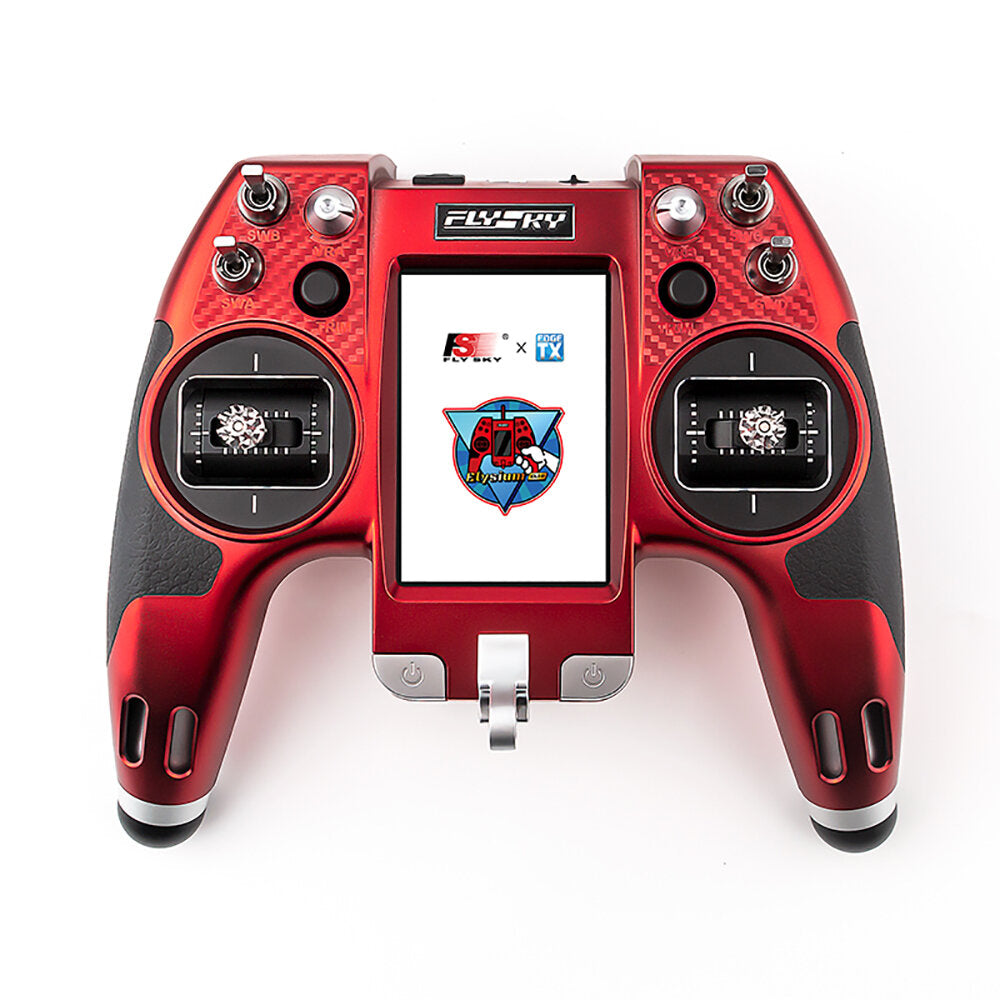

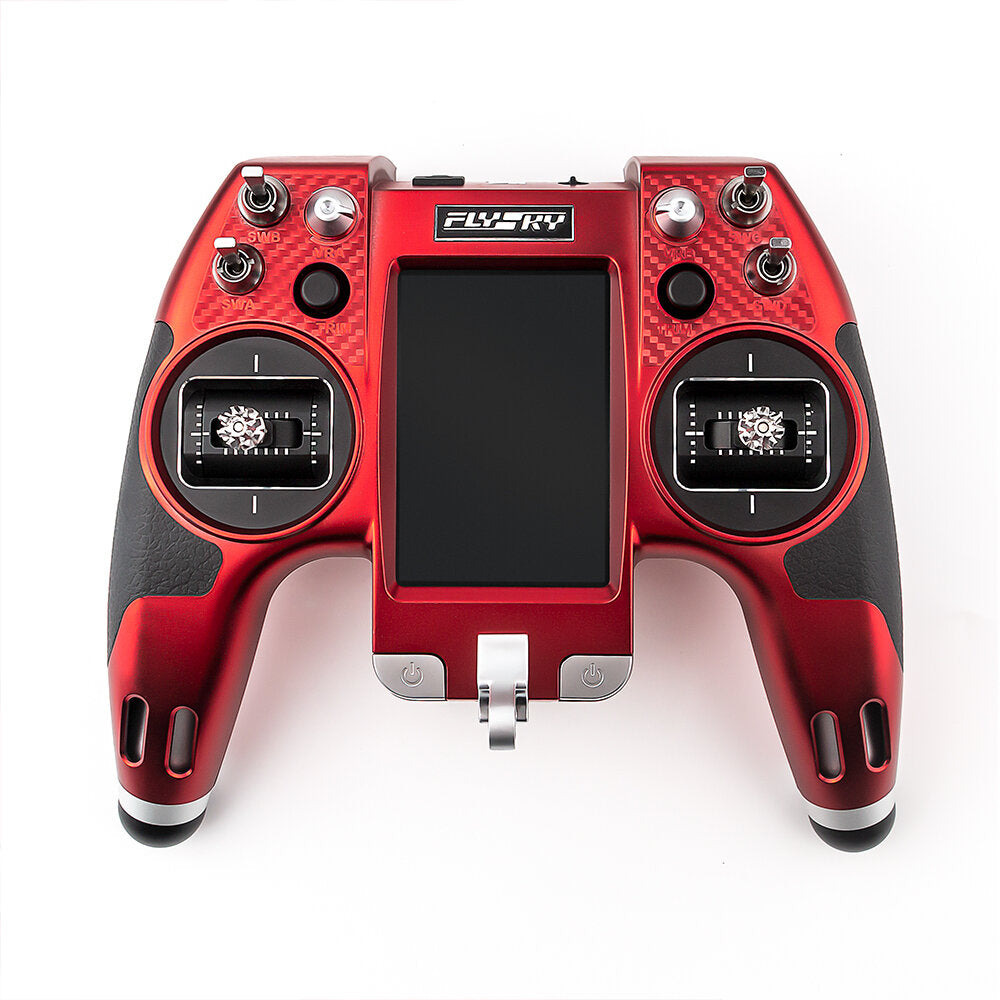

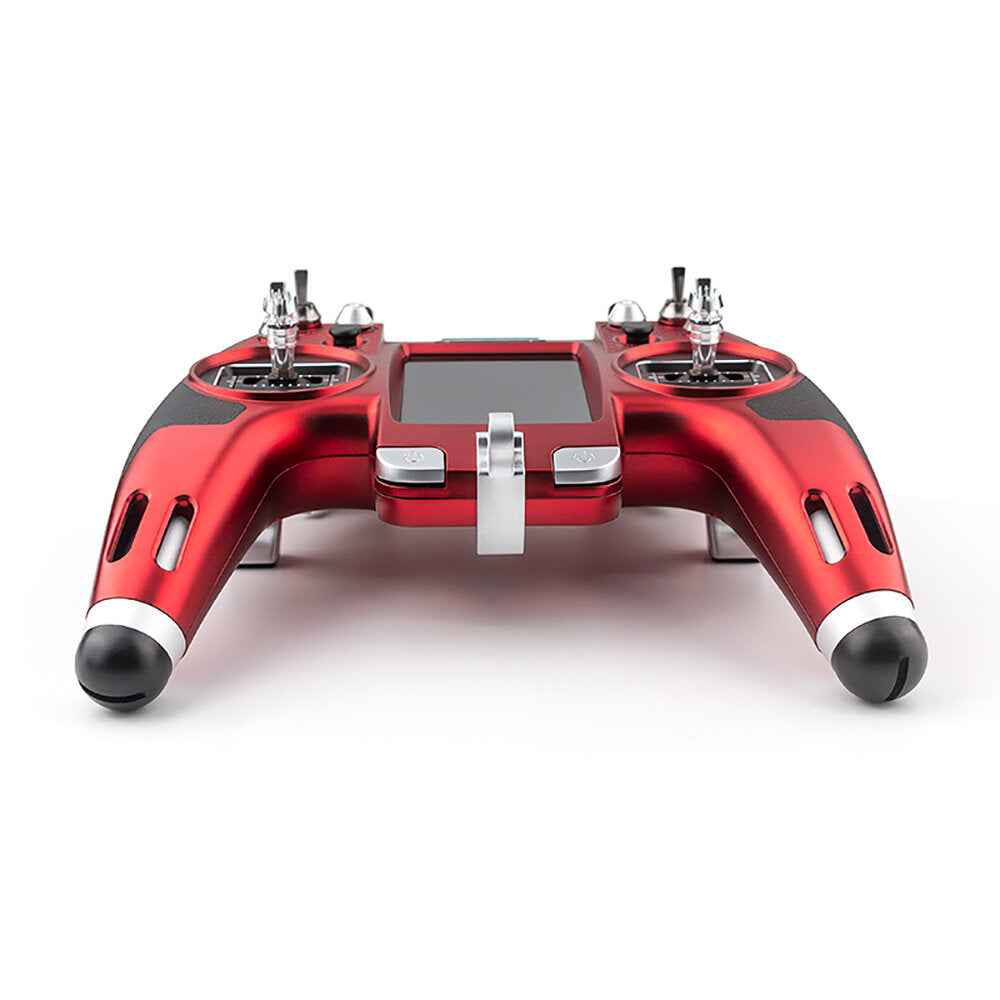

Flysky Elysium EL18 2.4GHz 3.5-Inch Touch Screen AFHDS 3 OpenTX/EdgeTX System Remote Controller RC Transmitter Limited Edition for FPV Racing Drone
Beschrijving:
Merk: Flysky
Item: Elysium E18 RC Transmitter

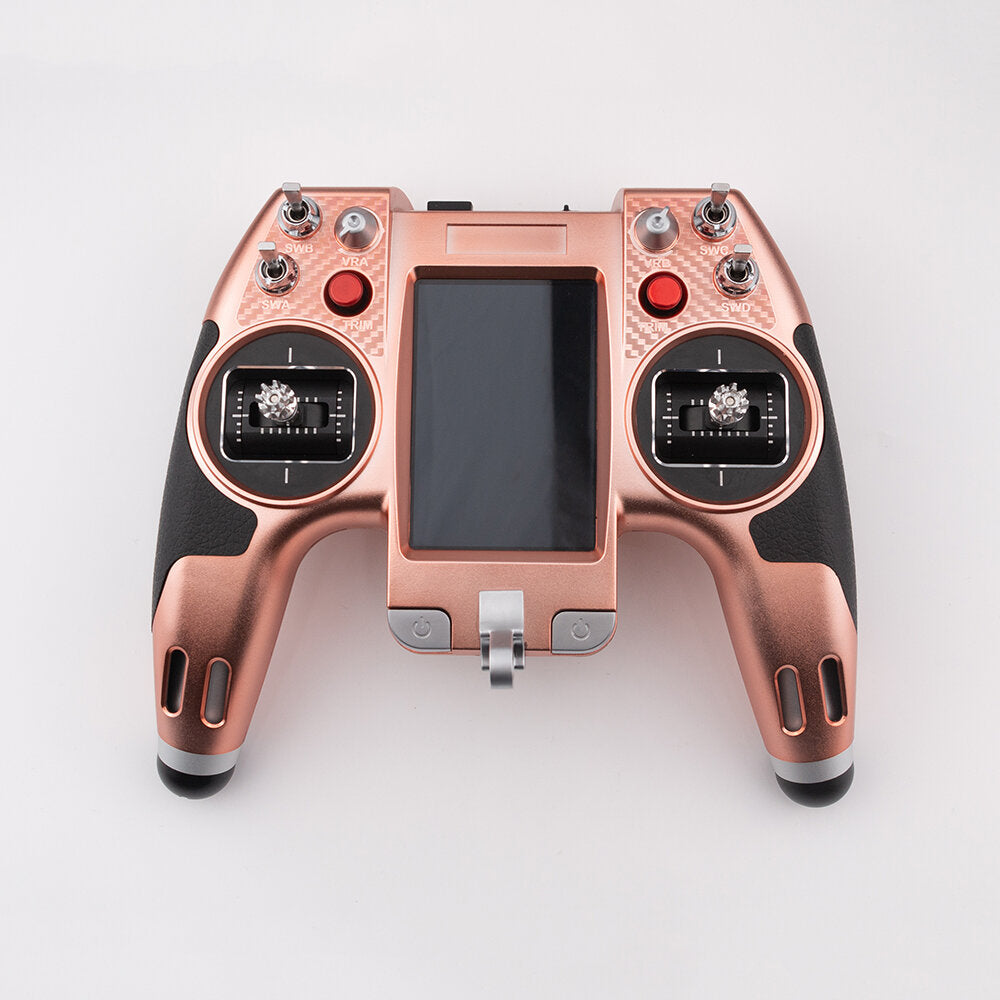

Color: Red (Standaard versie)/ paars, rosé goud (Limited Edition) (Optioneel)
Number of Channels: 18-channel is for Internal RF, and 32-channel is for External RF.
RF: 2.4 GHz ISM
2.4GHz Protocol: AFHDS 3
Maximum Power: < 20dBm (e.i.r.p.) （EU)
Antenna: Two antennas, one is a built-in antenna, the other is external rotatable antenna.
Input Power: 2* 18650 Li-Ion battery
Working Current: 400mA/4.2V
Data Output: Type-C USB
Charging Port: Type-C USB
Resolution: 4096
Screen: 320*480 resolution IPS colour touch-screen
Distance: > 3500m (Air distance without interference)
Online-update: ja
Temperature Range: -10℃ ~ +60℃
Humidity Range: 20% ~ 95％
Dimensions: 205*183.6*82.9mm
Weight: 726g
Compatible Receivers: Classic version receivers, such as FTr10 or FTr16s, etc. Enhanced version receivers, such as FTr8B, FTr12B or Tmr, etc.
Compatible Models: Racing drones, fixed-wingaircraft, gliders or multicopters, etc.
Certifications CE，FCC ID: 2A2UNEL1800, UKCA
Flysky Elysium EL18 Transmitter Manual, Klik hier

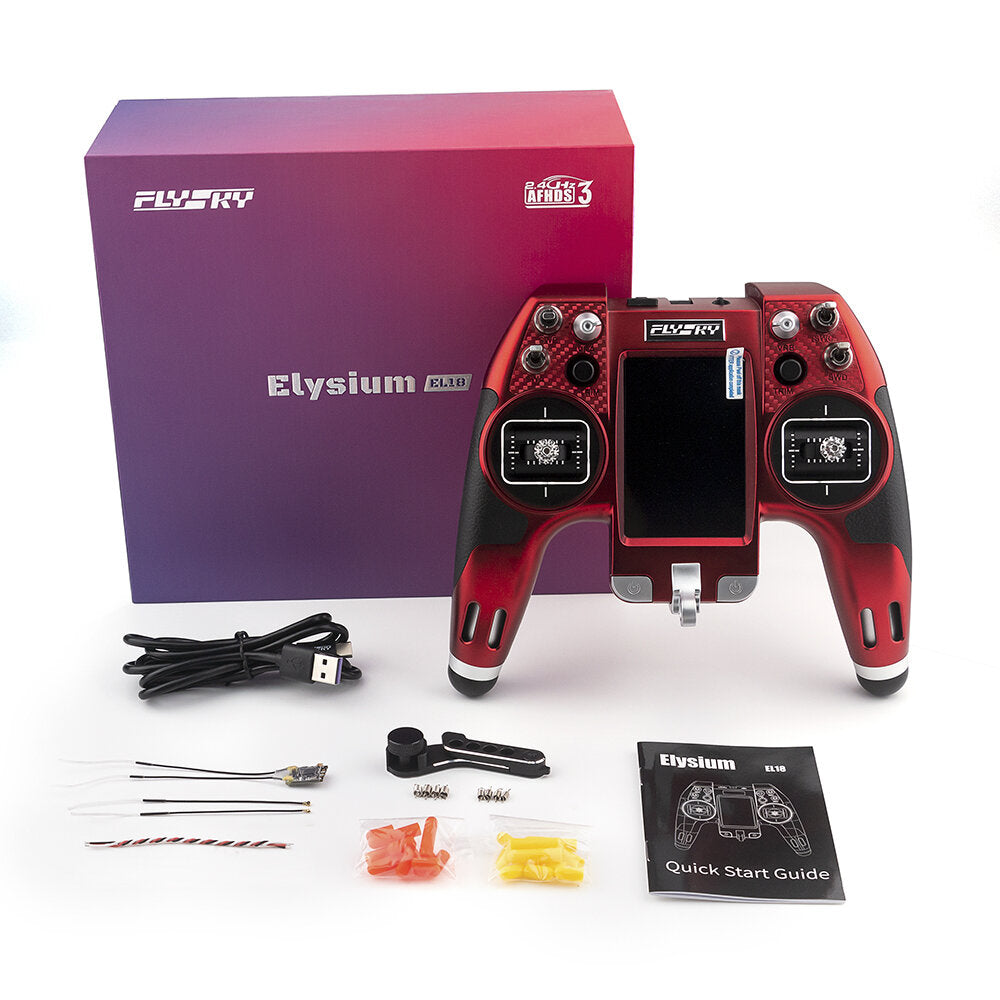

Pakket Inbegrepen:
1x Flysky Elysium EL18 Transmitter (Red / Blue / Purple / Rose Gold Optional)
1pc x TMR Receiver
1pc x 4G Micro SD Card
1pc x Shelf of the center of gravity adjustment
2pcs x TMR receiver antenna
1 st x usb naar usc-c oplaadkabel
2 sets x EL18 Toggle Switch Color Switch Cap (yellow and orange)
4pcs x Spring (High elasticity 13T Hard)
4pcs x Spring (Low elasticity 14T Hard)
1pc x EdgeTX quick start guide (Paper file)
1pc x EdgeTX user manual (Electrinuc archives)
