Functiebeschrijving, toepassingsgebieden:
1. Reparatie van huishoudelijke apparaten: geschikt voor de reparatie-industrie van huishoudelijke apparaten om geheugenchips op kleuren-tv's, dvd's, computermoederborden en harde schijven te flashen.
2. Product R&D: de testchip wordt geprogrammeerd tijdens het product R&D-proces van het bedrijf.
3. Massaproductie in de fabriek: De volautomatische offline kopieerfunctie is vooral geschikt voor het batchgewijs branden van geheugenchips in de fabriek.
Functies:
1. USB 2.0-interface, snelheid tot 12 Mbps.
2. De lees- en schrijfsnelheid is supersnel. Het duurt slechts 3 seconden om EN25T80 te lezen en 9 seconden om EN25T80 te schrijven. Het is momenteel de snelste BIOS-chipprogrammeur op de markt.
3. Herken automatisch het chipmodel.
4. Detecteer automatisch of de chip correct is geplaatst.
5. Selecteer automatisch de voedingsspanning van de chip.
6. Automatisch offline kopiëren.
7. Ondersteuning van pc-software en firmware-upgrade voor programmeurs.
8. Volledig ondersteunen 25 FLASH, 24 EEPROM, 25 EEPROM, 93 EEPROM en andere series geheugenchips.
9. Het uiterlijk is klein en gemakkelijk mee te nemen, ongeveer even groot als een normaal visitekaartje.
10. Gewicht: 115 gram
Lijst met ondersteunde chipmodellen:
Ondersteuning 24, 25, 93 serie chips van bijna alle fabrikanten op de markt!
************************************ 25 SPI FLASH********* ******************************
AMIC: A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL@: AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, 2625DF081A, 2625DF1, AT1
EON: EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25T80, EN25B16, EN25B, EN2516, EN25B, EN2516, , EN25B64, EN25B64T, EN25F64, EN25P64, EN25Q64, EN25F128, EN25Q128
ES: ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT: F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
MXIC: MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25D MXL3235D, MX25L3225D, MX25D MXL3235D
VOLGENDE: NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC: PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN: SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
SPANSIE: S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
SST: SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016032 SST25VF253
ST: M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25PE40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
WINBOND: W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40, W25X40A, W25X40AL, W25X40L, W25P80, W80X25, W25P
*****************************************24 EEPROM****** ***********************************
ATMEL@: AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16, AT24C16A, AT24C24B, AT24C64, AT24C24B, AT24C128, AT24C24A AT24C256, AT24C256A, AT24C256B, AT24C512, AT24C512A, AT24C512B, AT24C1024 , AT24C1024A, AT24C1024B
KATALYSATOR@: CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24C256, CAT24WC64512, CAT24WC128,
GEMEENSCHAPPELIJK: 24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 3V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C3 5V 24C, 24C128 5V, 24C256 3V, 24C256 5V, 24C512 3V, 24C512 5V, 24C1024 3V, 24C1024 5V
FAIRCHILD: FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C512L,
HOLTEK: HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24LC1282, HT24C24CLC, HT24C24CLC
ISSI: IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024
MICROCHIP: 24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24AA64, 24LC32, 24AA64, 24LC , 24AA128, 24FC128, 24LC128, 24AA256, 24FC256, 24LC256, 24AA512, 24FC512, 24LC512, 24AA1024
NSC: NSC24C02, NSC24C02L, NSC24C64
RAMTRON: FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512
ROHM: BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64
ST: ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64
XICOR: X24C01, X24C02, X24C04, X24C08, X24C16
**************************************** 93 EEPROM****** ***********************************
AKM: AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV
ATC: ATC93C46, ATC93LC46 (16 bit), ATC93LC46 (16 bit)-SOP8, ATC93LC46 (8 bit), ATC93LC46 (8 bit)-SOP8, ATC93C56, ATC93LC56 (16 bit), ATC93LC56 (16 bit)-SOP8, ATC93LC56 (8 bit), ATC93LC56 (8 bit) SOP8, ATC93C66, ATC93LC66 (16 bit), ATC93LC66 (16 bit)-SOP8, ATC93LC66 (8 bit), ATC93LC66 (8 bit)-SOP8
ATMEL@: AT93C46 (met 16 bits), AT93C46 (met 16 bits) -SOP8, AT93C46 (met 8 bits), AT93C46 (met 8 bits) -SOP8, AT93C46A, AT93C56 (met 16 bits), AT93C56 (met 16 bits) -SOP8, AT93C56 (met 8 bits), AT93C56 (met 8 bits) -SOP8, AT93C57 (met 16 bits), AT93C57 (met 16 bits) -SOP8, AT93C57 (met 8 bits), AT93C57 (met 8 bits) -SOP8, AT93C66 (met 16 bits), AT93C66 (met 16 bits) -SOP8, AT93C66 (met 8 bits), AT93C66 (met 8 bits) -SOP8, AT93C86 ( Met 16 bits), AT93C86 (met 16 bits) -SOP8, AT93C86 (met 8 bits), AT93C86 (met 8 bits) -SOP8
KATALYSATOR@: CAT93C46 (met 16 bits), CAT93C46 (met 8 bits), CAT93C46A, CAT93C46I, CAT93C56 (met 16 bits), CAT93C56 (met 8 bits), CAT93C56A, CAT93C57 (met 16 bits), CAT93C57 (met 16 bits) -SOP8, CAT93C66 (met 16 bits), CAT93C66 (met 8 bits), CAT93C66 (met 8 bits) CAT93C86 (met 16 bits), CAT93C86 (met 8 bits)
GEMEENSCHAPPELIJK: 93C46 (16 bit), 93C46 (8 bit), 93C56 (16 bit), 93C56 (8 bit), 93C66 (16 bit), 93C66 (8 bit), 93C86 (16 bit), 93C86 (8 bit)
EXEL: XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66
FAIRCHILD: FM93C06AM8 (16 bits), FM93C06AM8 (8 bits), FM93C06M8, FM93C06N, FM93C46AM8 (16 bits), FM93C46AM8 (8 bits), FM93C46AN (16 bits), FM93C46AN (8 bits), FM93CS46 (16 bits), FM93C56AN (16 bits), FM93C56AN (16 bits) (16 bits), FM93C66AM8 (16 bits), FM93C66AM8 (8 bits), FM93C66AN (16 bits), FM93C66AN (8 bits), FM93C66B, FM93C66M8 (16 bits), FM93C66MT8 (16 bits), FM93C66N (16 bits), FMAM938CS66 (16 bits) , FM93C86AM8 (8-bits), FM93C86AN (16-bits), FM93C86AN (8-bits)
HOLTEK: HT93LC46A (met 16 bits), HT93LC46A (met 8 bits), HT93LC56A (met 16 bits), HT93LC56A (met 8 bits), HT93LC66A (met 16 bits), HT93LC66A (met 8 bits)
ICT: ICT93C46 (16bit), ICT93C46 (8bit), ICT93C56 (16bit), ICT93C56 (8bit), ICT93C66 (16bit), ICT93C66 (8bit)
ISSI: IS93C46 (16-bits), IS93C56 (16-bits), IS93C66 (16-bits)
MICROCHIP: 93C06 (met 16 bits), 93C06 (met 16 bits) -SOP8, 93AA46 (met 16 bits), 93AA46 (met 8 bits), 93AA46 (met 8 bits) -SOP8, 93C46 (met 16 bits), 93C46 (met 16 bits) -SOP8, 93C46A, 93C46B, 93LC46 (met 16 bits), 93LC46 (met 16 bits) -SOP8, 93LC46 (met 8 bits), 93LC46 (met 8 bits) -SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (met 16 bits), 93AA56 (met 8 bits), 93AA56 (met 8 bits) -SOP8, 93C56 (met 16 bits), 93C56 (16-bits) -SOP8, 93C56 (8-bits), 93C56 (8-bits) -SOP8, 93C56A, 93C56A-SOP8, 93C56B, 93C56B-SOP8, 93LC56 (16-bits), 93LC56 (16-bits) -SOP8, 93LC56 (8-bits), 93LC56 (8-bits) ) -SOP8, 93LC56A, 93LC56B, 93LC56B-SOP8, 93AA66 (16bit), 93AA66 (8bit), 93AA66 (8bit) -SOP8, 93C66 (16bit), 93C66 (16bit) -SOP8, 93C66 (8bit), 93C66 (8bit) -SOP8, 93C66A, 93C66A-SOP8, 93C66B, 93C66B-SOP8, 93LC66 (16 bit), 93LC66 (16 bit) -SOP8, 93LC66 (8 bit), 93LC66 (8 bit) -SOP8, 93LC66A, 93LC66B, 93LC66B-SOP8, 93AA76 (16 bit) ), 93AA76 (met 8 bits), 93C76 (met 16 bits), 93C76 (met 8 bits), 93LC76 (met 16 bits), 93LC76 (met 8 bits), 93LC76A, 93LC76B, 93AA86 (met 16 bits), 93AA86 (met 8 bits), 93C86 (met 16 bits), 93C86 (met 8 bits) , 93LC86 (16-bits), 93LC86 (8-bits), 93LC86A, 93LC86B
NSC: NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86
ROHM: BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF
ST: ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56R-S56SWOP8, M93S56R-SWOP8, M93S56R-S66- SOP8, M93S66R, M93S66R-SOP8, M93S66W, M93S66W-SOP8, ST93C66
****************************************25 EEPROM****** ************************************
ATMEL@: AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT25256, AT25512
KATALYSATOR@: CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05P, CAT25C05S, CAT25C05U, CAT25C08P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C09S, CAT25C09U, CAT25C16P, CAT25C16S, CAT25C16U, CAT25C17P, CAT25C17S, CAT25C17U, CAT25C32P, CAT25C32S, CAT25C33P, CAT25C33S, CAT25C64P, CAT25C64S, CAT25C65P, CAT25C65S, CAT25C128P, CAT25C128S, CAT25C256P, CAT25C256S
GEMEENSCHAPPELIJK: 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512
MICROCHIP: 25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25LC320, 25AA640, 25C640, 25LC640
RAMTRON: FM25C160, FM25640, FM25CL64
ST: ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16
TI: TI2532, TI2532A, TI2564
XICOR: XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512

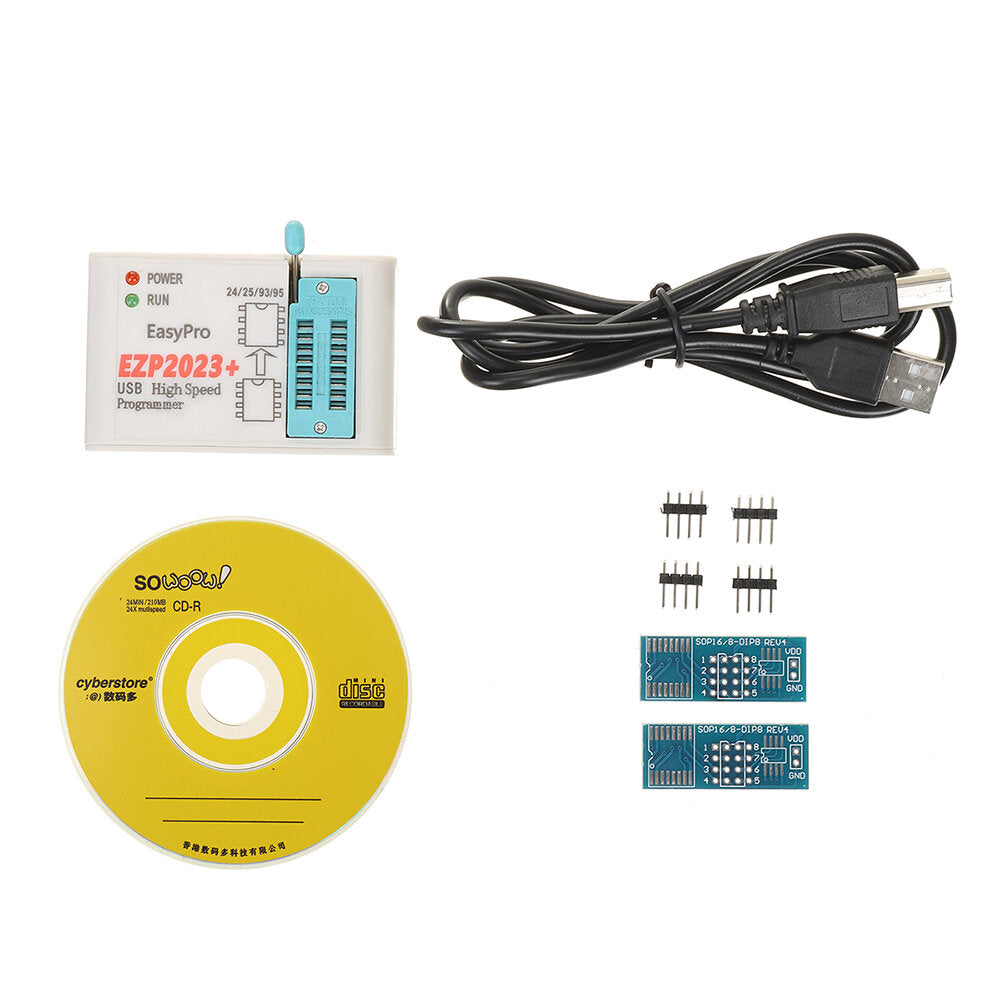

Pakket bestaat uit:
(optioneel)
1 x Programmeur host
1 x High-speed afgeschermde USB-communicatiekabel
1 x CD (If you have not received the CD, you can download it from this link.>>>Klik op mij <<<)
2 x eenvoudige patchadapters
