Toepassingsgebied:
Selfserviceterminal
Kanaalpoort
kastje
Handheld-terminal
Game machine
Scannen van streepjescodes
QR-code betalen
Compatibel systeem:
Linux, Android, Windows XP, Windows 7, Windows 8, Windows10, MAC
Technische parameters | |
Grootte | 21.4 x 14.3 x 11mm |
Beeldsensor | CMOS |
Resolutie | 640 (horizontaal) x 480 (verticaal) |
Verlichting | witte LED |
Lees nauwkeurigheid | > = 5mil |
Focus | LED650 + -10nm |
Symboolcontrast | > = 30% |
Leescodesysteem | |
2D | PDF417, QRcode, Datamatrix, Chinese gevoelige code |
1D | UPC / EAN, Code128, Code93, Code39, Code11, Codebar, MSI Pressey, ISBN, Standard 2 of 5, interleaved 2 of 5, Industrial 2 of 5 |
Typische leesdiepte van het veld | |
EAN-13 (13mil) | 60-200mm |
Code-39 (6.67mil) | 80-115mm |
Data Matrix (10mil) | 30-95mm |
QR-code (20mil) | 50-200mm |
PDF 417 (13.34mil) | 30-220mm |
Barcodegevoeligheid | Tilt + -45 ° C |
Doorbuiging + -50 ° C | |
Roteer 360 ° C | |
Gezichtsveld | Niveau 53 ° |
Verticaal 40 ° | |
Herkenningssnelheid | 30 frames / sec |
Werkspanning | + 3.3V |
Bedrijfsstroom | 160 mA (standaard) 190 mA (max) |
Standby-stroom | 58mA |
Slaapstroom | <1mA |
Kabel standaard | Rechte lijn, 1.5M |
Uiterlijk grootte | 21.4*14.3*11mm |
Werktemperatuur | -10 ° C ~ 55 ° C |
Bewaar temperatuur | -40 ° C ~ + 70 ° C |
Pakket bestaat uit:

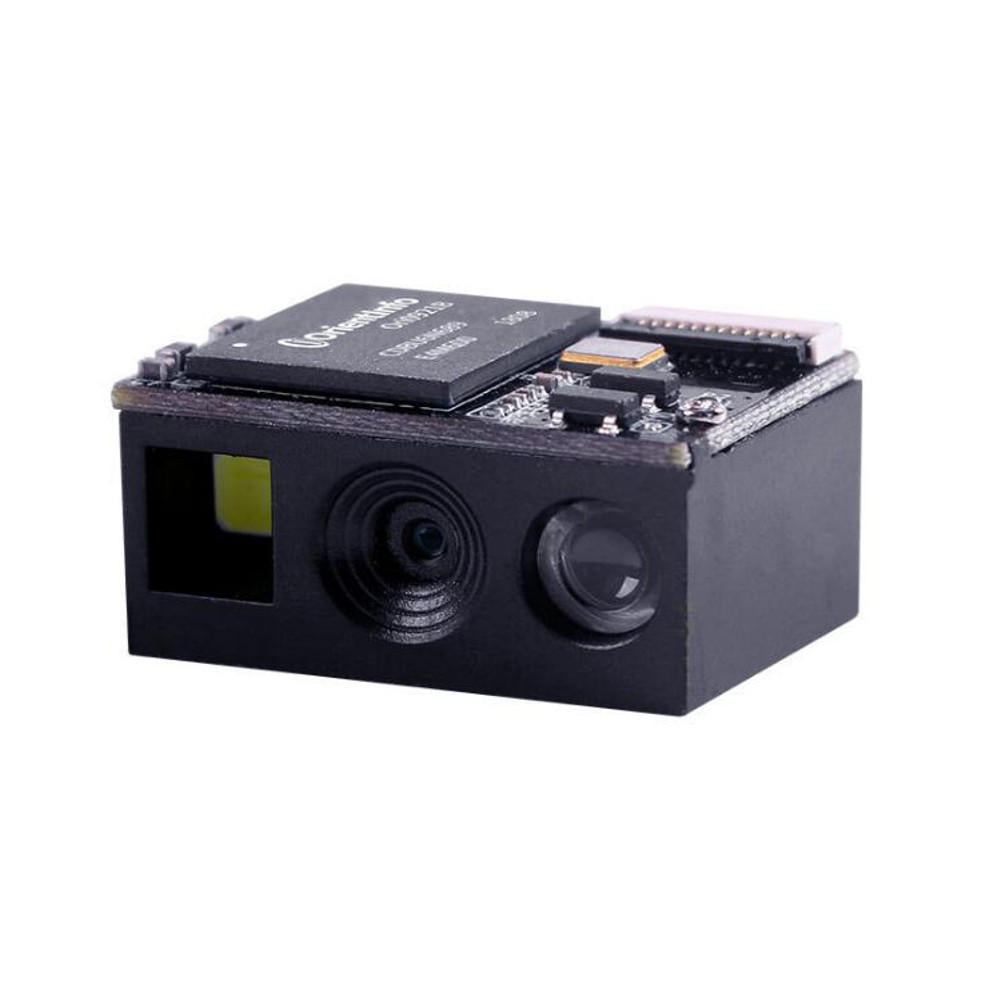

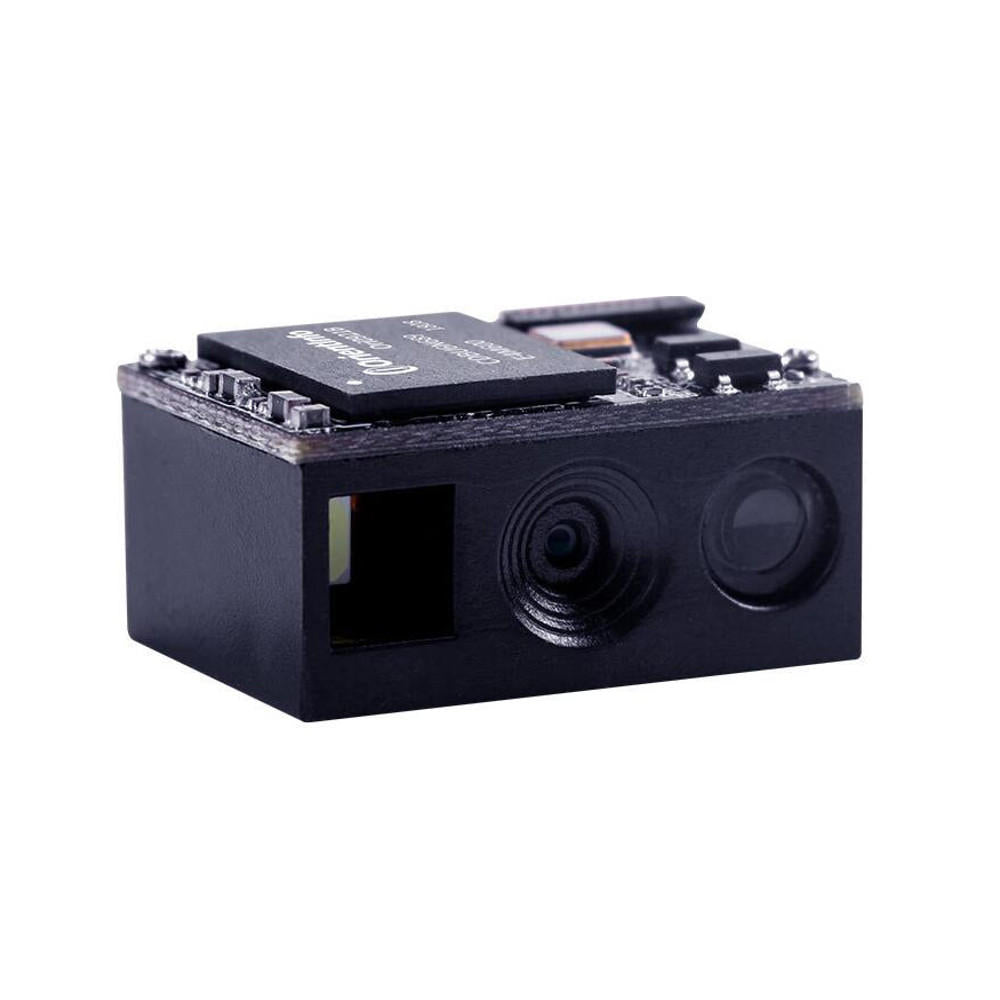

1 x scanmodule
